Evada HP-I Series 1KVA -10KVA Industrial UPS System / Heavy Load Fluctuation Shock Interrupted Power Supplies

Ask Lasest Price
Brand Name :	EVADA
Model Number :	HP-I 1-20KVA
Certification :	ISO9001
Price :	US$1000-10000/pc
Payment Terms :	T/T, Western Union, MoneyGram
Supply Ability :	10000pcs/Month
Delivery Time :	3-15days

Add to Cart

Product Details
Company Profile

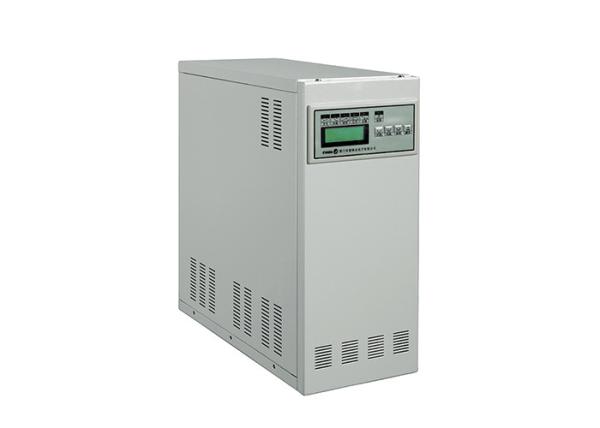

Evada HP-I Series 1KVA -10KVA Industrial UPS System / Heavy Load Fluctuation Shock Interrupted Power Supplies

Evada HP-I Series 1KVA -10KVA Industrial UPS Heavy Load Fluctuation Shock Interrupted Power Supplies

Parameters:

Model	HQ10I	HQ20I	HQ30I	HQ50I	HQ60I	HQ1110I
Rated Capacity	1KVA	2KVA	3KVA	5KVA	6KVA	10KVA
Output
Voltage	Single phase 220Vac± 1%
Frequency	50Hz±5% at commercial power and 50Hz±0.5% in battery state
Dynamic Response	±3%(100% Load change)
Waveform Distortion	<3% Linear load
Peak Factor	3:01
Unbalanced load current of parallel machine	≤3%
Power Factor	0.8/0.9(Optional)
Overload Capacity	125% turn to bypass after 1 minute maintenance; 130% turn to bypass immediately, and automatically restore to UPS power supply after overload elimination.
Switching Time	0ms
Input
Voltage	Single phase(L+N+G)220±25Vac
Frequency	50±5%Hz
FQ Tracking	≤1Hz/s
Battery
Type	Fully sealed maintenance-free lead-acid batteries
DC voltage	192 Vdc
Charging Current	Matching according to need
Display
LED Indication	Municipal Electric Lamp, Inverter Lamp, Battery Undervoltage Lamp, Bypass Lamp, Overload Lamp, Fault Lamp
LCD Indication	Chinese/English Display: Input and Output Voltage and Frequency, Battery Voltage, Load Percentage, UPS Status, Operation Temperature, etc.
Alarm
Protection Function	Power failure, battery low voltage, output overload, UPS abnormality, etc.
	Overload: turn to bypass power supply, automatically turn to inversion after reducing load; overheat: > 85 C turn to bypass power supply; short circuit: automatic current limiting and turn off output
	Faults: turn bypass power supply; over-voltage protection: UPS output over-voltage turn bypass; under-voltage protection: battery under-voltage turn off UPS output
JRE
Temperature	0～40℃
Humidity	0- 95%(No Condensation)
Noisy	<55dB@1m
Communication
Interface	RS232/trunk contacts; optional SNMP network adapter
Mechanical Index
WDH mm	180497352			240580535		480420870
Weight kg	32	35	40	60	65	130
