19'' 2U Uninterruptible Power Source 1KVA 2KVA 3KVA Sine Pure Wave 110V 220V

Ask Lasest Price
Brand Name :	EVADA
Model Number :	HP-G 1-10KVA
Certification :	ISO9001
Price :	US$100-600/pc
Payment Terms :	T/T, Western Union, MoneyGram
Supply Ability :	10000pcs/Month
Delivery Time :	3-15days

Add to Cart

Product Details
Company Profile

19'' 2U Uninterruptible Power Source 1KVA 2KVA 3KVA Sine Pure Wave 110V 220V

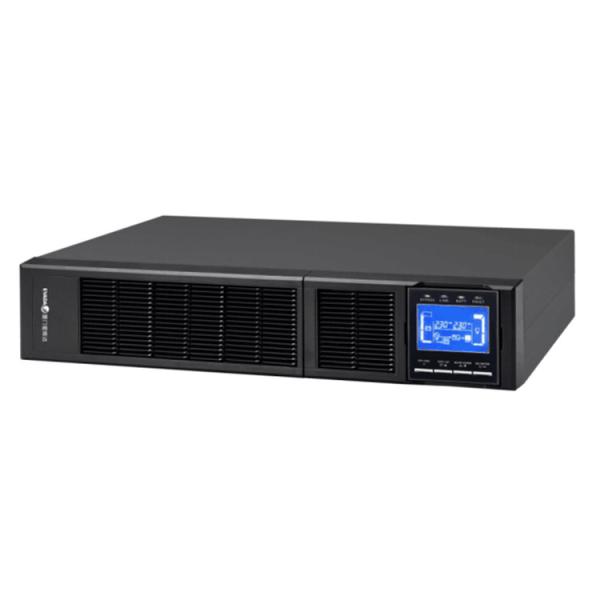

Evada 19'' 2U High Frequency Rack Mount online UPS power suply 1KVA 2KVA 3KVA Sine Pure Wave 110V 220V

Parameters:

Model		HQ10GR(L)	HQ20GR(L)		HQ30GR(L)	HQ60GR(L)	HQ1110GR(L)
Capacity		1000 VA	2000 VA		3000 VA	6000 VA	10000 VA
Input
Voltage Range		110~300 VAC@50 load；160~280 VAC@100 load				110~300VAC@50 load；176~300 VAC@100 load
Frequency Range		40Hz ~ 70 Hz				46Hz ~ 54 Hz or 56Hz ~ 64 Hz
Power Factor		≥0.99@100% load
Output
The output voltage		200/208/220/230/240VAC				208/220/230/240VAC
Voltage accuracy		±1%
Frequency range (synchronization range)		47 ~ 53 Hz or 57 ~ 63 Hz				46Hz ~ 54 Hz or 56Hz ~ 64 Hz
Frequency range (battery mode)		50 Hz ± 0.25 Hz or 60Hz ± 0.3 Hz				50 Hz ± 0.1 Hz or 60Hz ± 0.1 Hz
Overload capability		105%~110%: 10 minutes； 110%~130%: 1 minute； >130%: 3 seconds				100%~110%: 30 minutes； 110%~130%: 5 minutes； >130% : 10 seconds
Power factor		0.8				Standard 0.8 (optional 1.0)
Current peak ratio		3:1
Harmonic distortion		≤3% @ 100% Linear load ≤6% @ 100% Nonlinear load				≤3% @ 100% Linear load ≤5% @ 100% Nonlinear load
Switch time	Mains - battery	0ms
	Inverter - Bypass	4 ms				0ms
Waveform (battery mode)		Pure sine wave
Effectiveness
Inverter mode		>88%	>89%		>90%	> 92%	> 93%
Battery
Standard machine	battery model	12V / 7Ah
	Number of batteries	2	4	6		Preset 16(16~20 Adjustable)
	recharging current	1A				Preset 1A；Maximum:2A Optional
	Charging voltage	27.3VDC ± 1%	54.7 VDC ± 1%	82.0 VDC ± 1%		218.4 V ± 1%
Long extension machine	Number of batteries	3	4	6		Default 16(16~20Adjustable)
	recharging current	1A/2A/4A/6A				1A/2A/4A/6A (6A only apply to 16 batteries)
	Charging voltage	41.0VDC ± 1%	54.7VDC ±1%	82.1VDC ±1%		218.4 V ± 1%
Physical characteristics
Standard machine	Dimensions Deep x Width x Height (mm)	310 x 482.6 x 88	410 x 482.6 x 88	630 x 482.6 x 88		Host: 500x482.6x88(2U) Battery Box:668x482.6x88(2U)	Host: 580x482.6x133(3U) Battery Box: 580x482.6 x133(U)
	net weight (kg)	12	19	29.3		Host: 15 Battery Box: 48	Host:18 Battery Box: 61
Long extension machine	Dimensions Deep x Width x Height (mm)	310 x 482.6 x 88	410 x 482.6 x 88	410 x 482.6 x 88		500 x482.6 x 88(2U)	580 x482.6 x 133(3U)
	net weight (kg)	9	12	14.2		15	18
Environmental conditions
Operating environment		Relative humidity 20-95% and temperature 0-40 ° C (no condensation)				Relative humidity 0-95% and temperature 0-40 ° C (no condensation)
Noise		Less than 50 dB(A) @ 1 meter				Less than 50 dB(A) @ 1 meter	Less than 50 dB(A) @ 1 meter
Control management
Smart RS-232 or USB		Stand by Windows® 2000/2003/XP/Vista/2008/7/8,Linux,Unix And MAC
Optional SNMP		Support for power management by SNMP administrators and web browsers
